Feature:
1. Made of high‑quality materials, waterproof and dustproof, durable for has a long service life.
2. Specially designed for remote control car with excellent starting, acceleration and linear characteristics.
3. Compatible for 1 10 1 12 RC car electric speed controller with XT60 plug, fit well.
4. Multiple protection functions, battery low‑voltage cut‑off protection, overheating signal loss protection, motor stall protection.
5. Powerful current resistance, excellent heat dissipation, easy to program and compatible with pocket programming cards.
Specification:

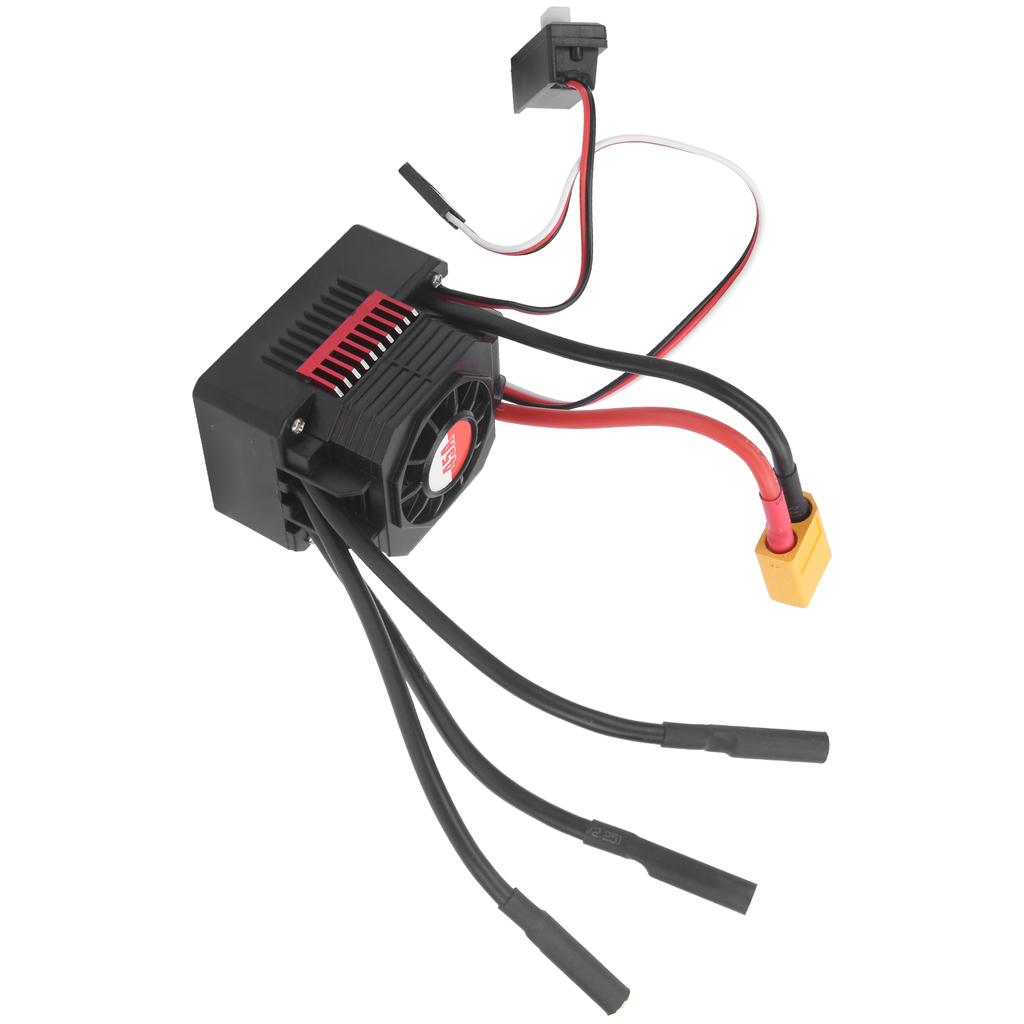

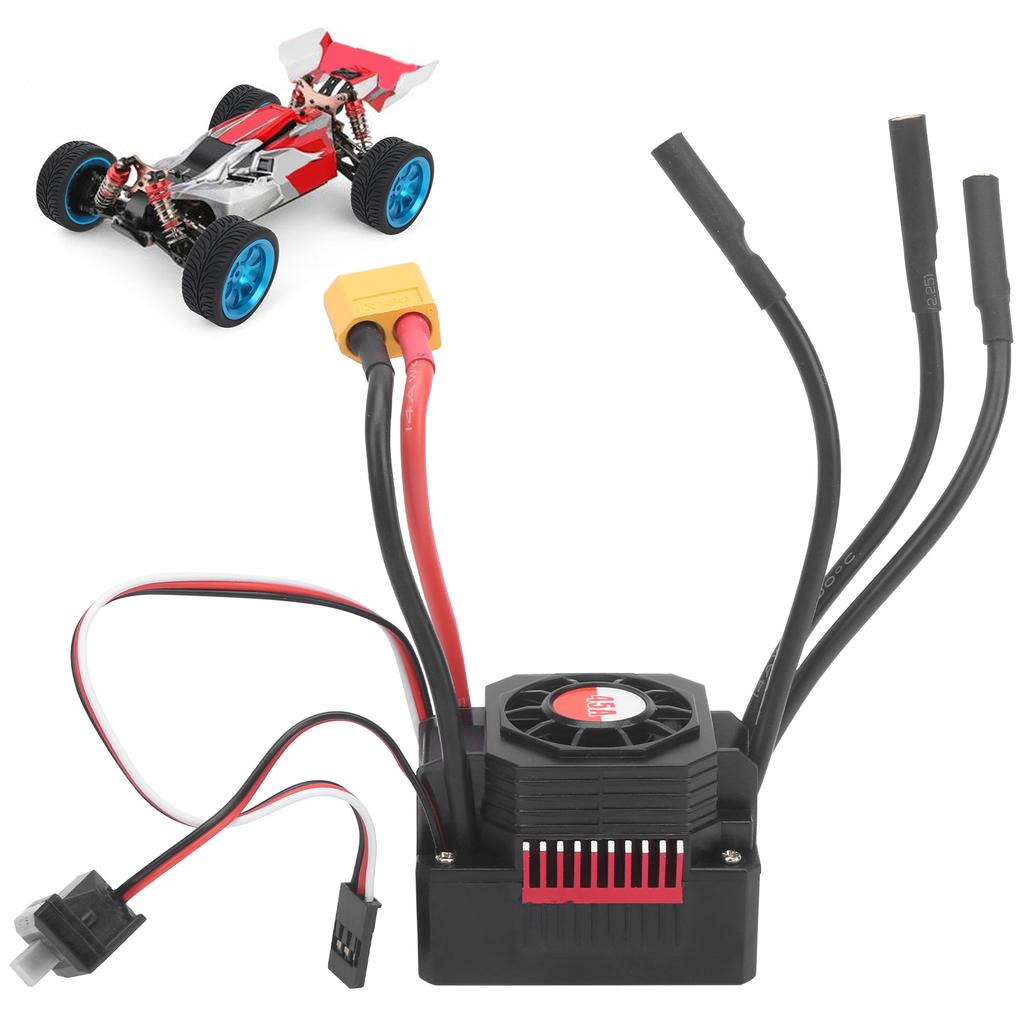

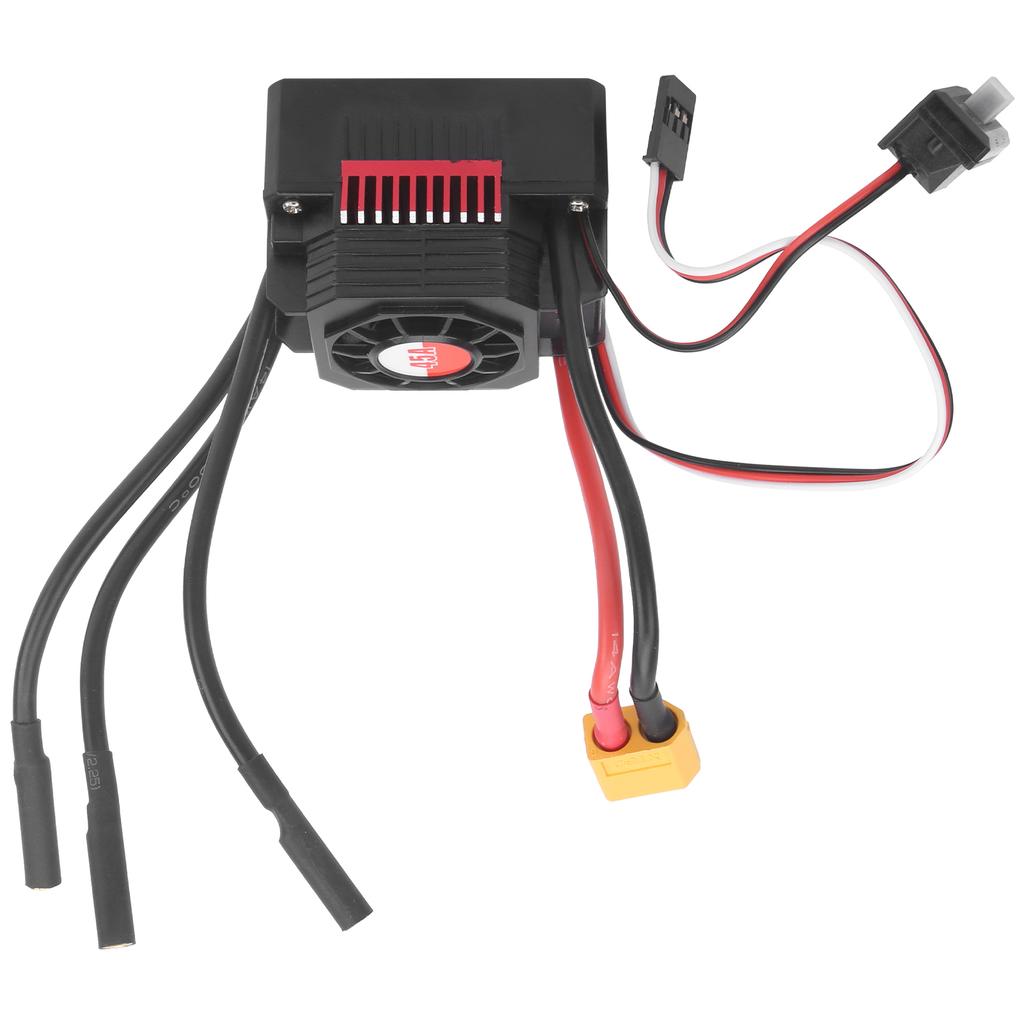

Item Type: Electric Speed ControllerMaterial: Plastic+AlloyColor: Red BlackSize: Approx. 51.5x38.5x38.5mm 2.0x1.5x1.5inWeight: Approx. 127.0g 4.5ozContinuous Current: 45A
Maximum Current: 240A
Motor Type: Sensorless and Brushless MotorFor lipo 2S or 6 nimh cells:
1. On road: 3650 size or smaller engine with kv <5600kv
2. Off road off road vehicle for monster: 3656 or smaller motor with KV <3900
For lipo 3s or 9 nimh cells:
1.On road: 3660 size or smaller engine with kv <3800kv
2. Off road off road vehicle for monster: 3656 size or smaller motor with KV <2700Resistance: 0.0014ohm
Battery: 2 3s lipo 4 9 cell nimhBec Output: 5.8V 3A (Switch Mode)
Fitment:Fit for 1 10 RC CarsFit for 1 12 RC Cars
Instuction:
1. Connect BEC wires with the receive
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC
5. When the connection of motor and battery is finished, the motor emits beep beep tone.
6. When the throttle stick is In the neutral position, the motor re emits beep beep tone
7. The ESC is workable
Troubleshooting:1 . If after power on , motor can , t work , no sound is emitted,please check the connections between battery pack and motor .
2 . If after power on , LED flashes , please check the voltage of battery pack , which should be from (5V 13V)
3 . If the motor emits a beep beep tone Only , please check all the connections : BEC wires , transmitter and receiver , throttle signal wires , etc . please check the transmitter TH . TRIM and adjust it to the motor re emits beep beep tone
4 . If the car can t be speed up , please check either voltage of the battery pack is too low or the temperature of ESC is too high . If the voltage ofthe battery pack is too low , please replace the battery pack . If the temperature of ESC is too high , please check all connections . If not ,pease push the button EPA on your remote control.
5 . If the car stops suddenly while in working state , please check the motors connections , and the road
6 . If the car runs in the opposite direction , which the transmitter is available , please swap two wire connections between the ESC and the motor
.
Package List:
1 x Electric Speed Controller1 x Manual
Note:
1. Manual measurement, please allow 1‑3mm 0.04‑0.12in error, thank you.2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.3. Before using this ESC in water, please remove the cooling fan; clean and dry it immediately after use to prevent the connector from rusting.
