1Pcs with Balanced Charging Lithium Battery Protection Board LiFePO4 Circuit Board

Label:Yes Size: 56 x 86 x 9mm(2.20 x 3.39 x 0.35in) Quantity: 1Pcs Material: PCB+Metal Color: As shown Brand new and high quality

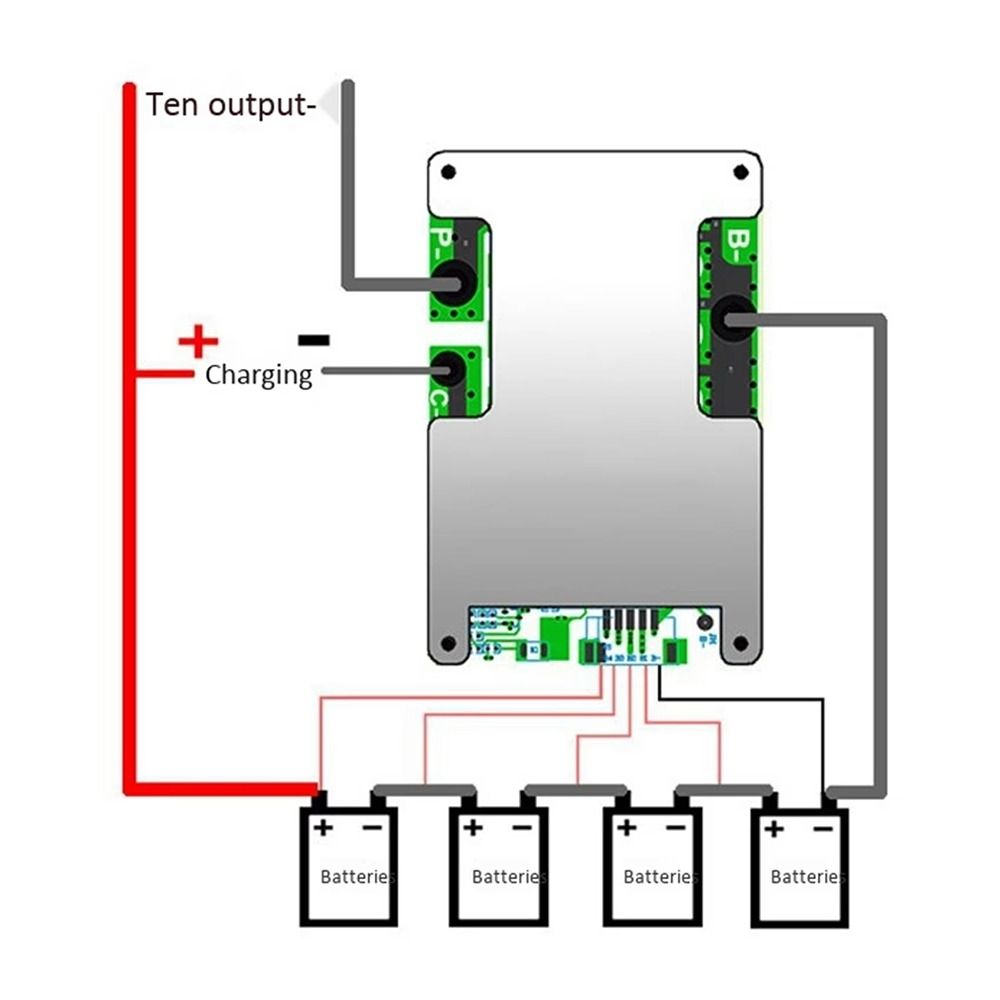

Discharge: Continuous discharge current: 0.1~100A(max) Instantaneous discharge current: 150A Charging: Charging Voltage(Standard): 15V Charging current: 0.1~10A(max) Overcharge Protection: Overcharge detection voltage: 3.75±0.025V Overcharge protection delay: 0.3S Overcharge release voltage: 3.60±0.05V Energy Balance: Energy balance detection voltage: 3.60±0.025V Energy balance release voltage: 3.60±0.025V Energy balance current: 42±5mA Over-discharge Protection: Over-discharge detection voltage: 2.0±0.1V Over-discharge detection delay: 0.1S Over-discharge release voltage: 2.3±0.1V Overcurrent Protection: Overcurrent detection voltage: 150mV Overcurrent detection delay: 9mS Overcurrent Protection current: 200±10A Overcurrent Protection release condition: Disconnect the load Short circuit Protection: Short circuit detection delay: 250uS Short circuit Protection release condition: Disconnect the load Main circuit conduction internal resistance:≤15m ohm Self-consumption current:≤20uA Operating temperature:-30℃~80℃ Wiring: Please test three series of battery voltage balance then cascade Don't need connect B+ C-: Charging - P-: Just can as discharge -

Notice: 1. The real color of the item may be slightly different from the pictures shown on the website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data. Thank for your understanding. 3. 1cm=0.39''.

Package Included: 1x Lithium Battery Charger Protection Board
