Specification:
Output waveform. Pure sine wave
Rated power: 4000W(Make sure that the continuous power is higher than the rated power of the equipment being used)
Input DC voltage: 12V;24V(Non-dual voltage input, please select the appropriate input voltage)
DC voltage range: 9V-15.5V/19.5V-28V
Output AC voltage: 220V
AC voltage range: 210V-230V
Low voltage alarm: 10V DC±0.5V
Low voltage shutdown: 9V DC±0.5V
Overload: shut down output
Overvoltage shutdown: 15.5V
Overheat : Automatic output shutdown
Fuse : Short circuit
Start-up : Soft start

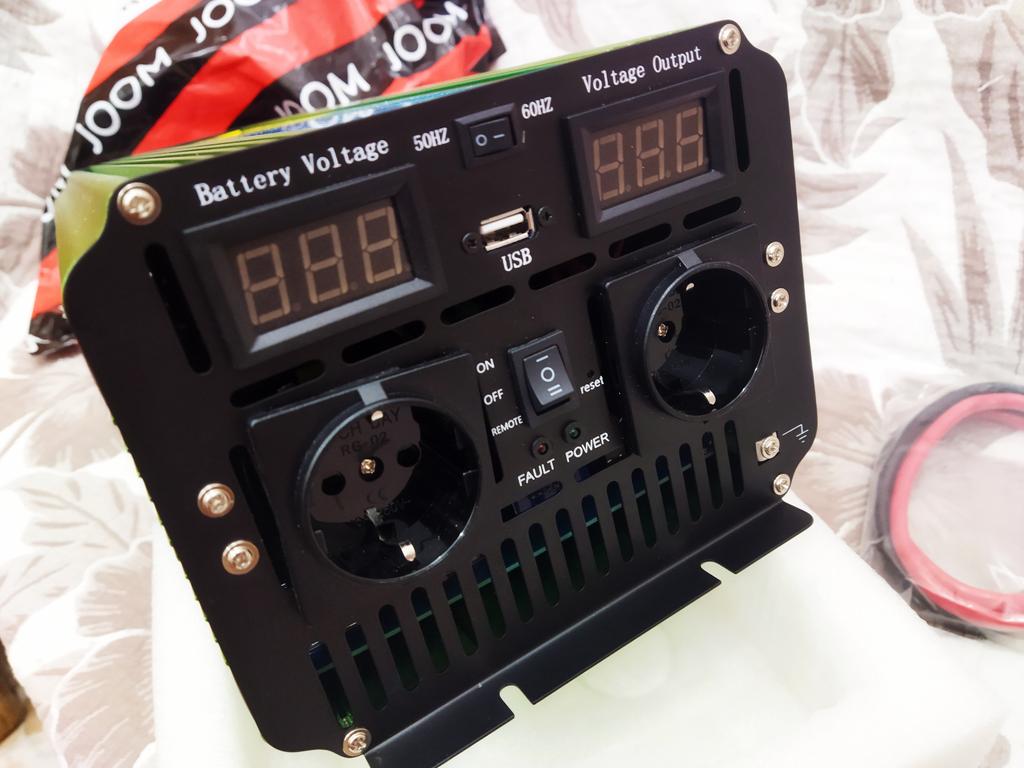

Digital display : Input/output voltage LED display
Material : Aluminium alloy
No load current : <2Amps
Conversion efficiency : >90%
Dimensions (approx.) : 435mm*143mm*179mm
Weight (approx.) : 5.7KG
Socket style : EU
AC socket: 2 Sockets
USB output: 5V
Colour: Green
8 Safety protection features
High voltage input cut-off protection.
Low voltage alarm protection.
Overload protection.
Overcurrent protection.
Surge power protection.
Reverse connection protection.
Short-circuit protection from fuses.
High quality is always a fundamental principle for inverters.

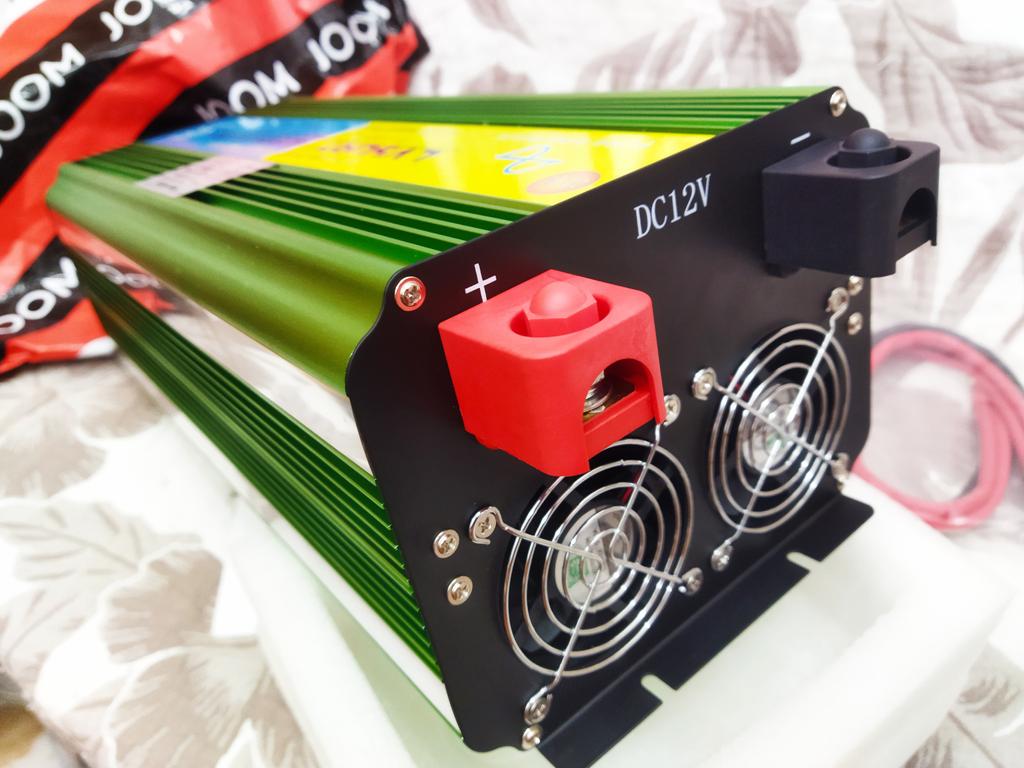

Cooling Fans:
When the temperature is less than or equal to 45℃,the fan stops working, and when the temperature is greater than or equal to 45℃, the fan starts to work.

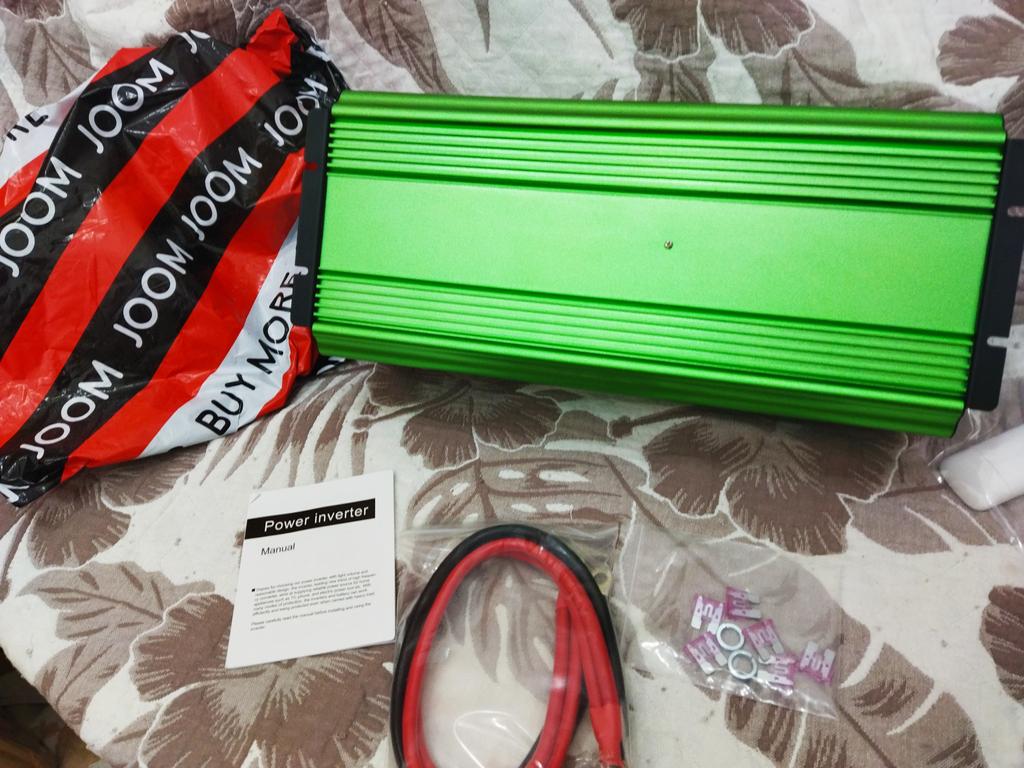

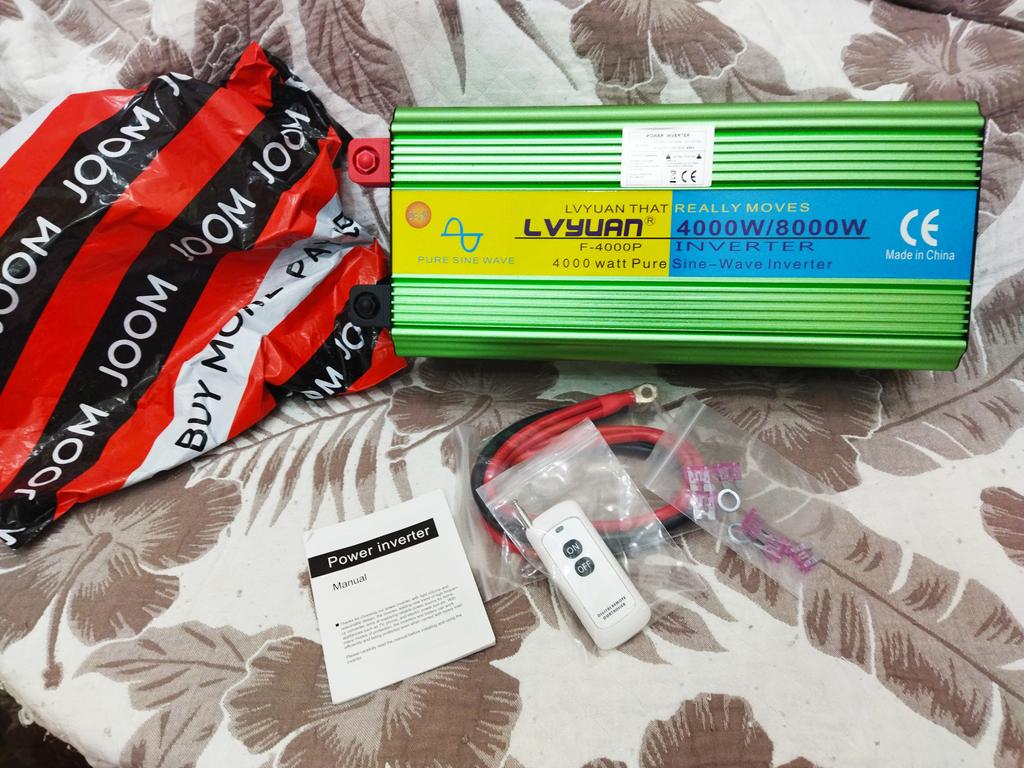

Package includes.

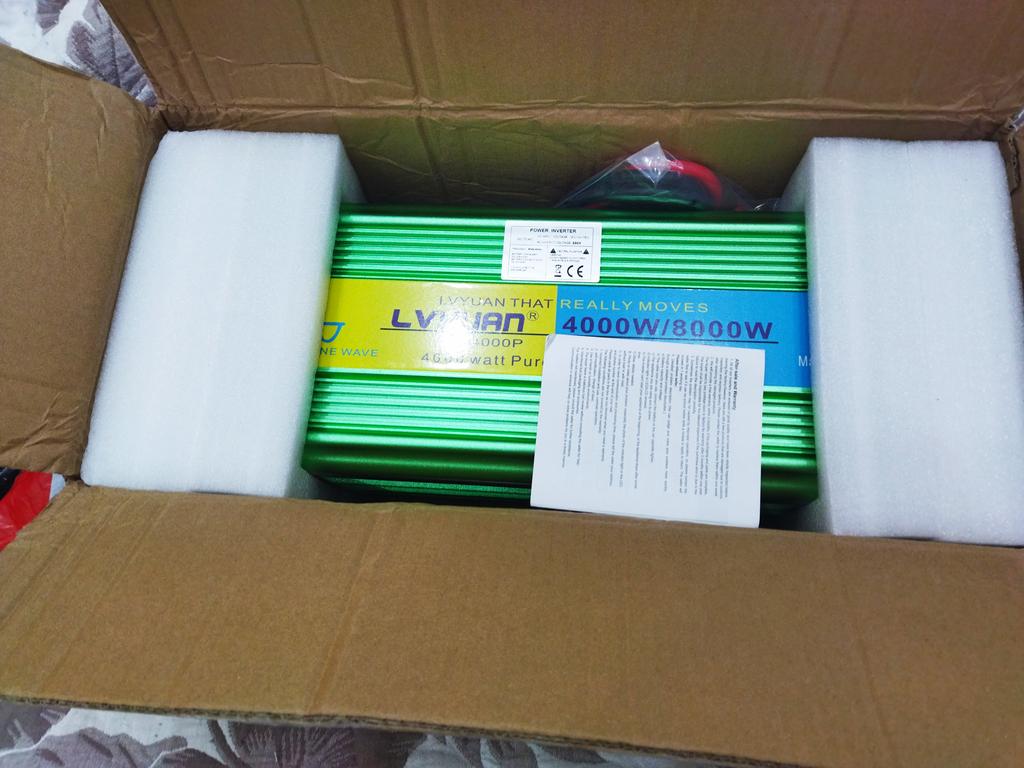

-Inverter
-white wireless remote control
(Batteries not included, 12V 23A batteries recommended)
extra thick battery cable
-User manual
Troubleshooting:
1. The inverter does not work.
A. Check that the plug is in place and that it is not loose.
B.Is the switch of the inverter turned on.
C.Is there voltage output from the car cigarette lighter jack, if there is an external lead, is the polarity correct.
2. The output power of the inverter is not enough and can only drive small power appliances
A. The capacity of the battery is too small and the appliance must be replaced or reduced.
B. The battery voltage is too low and must be charged or replaced.
C. If you change the car and the inverter is normal, you need to go to a professional repair shop to thicken the car cigarette lighter jack cable. The use of the cigarette lighter socket must not exceed a load of 150W.
D. If it is an external battery, thicken the lead and shorten the lead length
3. The inverter does not work and the fault light goes out
A. The electrical power used exceeds the rated power, causing protection. Reduce the use of electrical power
B. The battery voltage is too low, the battery must be charged or replaced
C. Reduce the use of electrical appliances.
