Feature:
1. Upgrade Performance: Waterproof rubber sealing screws, made of first class materials, ensure the longevity of the product. 30kg waterproof digital servo, the maximum torque can be up to 32kg.cm (7.2V).
2. High Accuracy: Equipped with high accuracy potentiometers and high resolution digital chips to ensure stable performance, quick response, strong anti interference ability, low noise and fast heat dissipation.
3. 270 Degree Rotation: The controllable angle range is 0 to 270 degrees, with good linearity and high control accuracy. It can rotate 360 degrees when the power is off, which is very suitable for robot joint activities.
4. Applications: It can be widely used for 18 110 112 scale robots, robotic arms, climbing cars, remote control boats, remote control planes, etc.
5. Longer Service Life: High accuracy metal gears with hard anodized treatment, longer service life. The CNC aluminum middle shell enhances heat dissipation to ensure the normal operation of the servo motor.
Specification:
Item Type: 30kg steering gear
Shell Material: Aluminum alloy
Gross Weight: 172g 6.1oz
Color: Blue
Servo Size: 40x20x40.5mm 1.57x0.79x1.59(without cable)
Operating Voltage: 4.8V 7.2V
Running Angle: 270 degrees +3 degrees (5002500usec)
Pulse Width Range: 5002500usec
Neutral Position: 1500usec
Rotation Direction: Counterclockwise (when 10002000usec)
Dead Zone Width: 5usec
No Load Speed: 0.24sec60 degrees 0.17sec60 degrees
Operating Current: 140mA 200mA
Peak Stall Torque: 29.5kg.cm 32kg.cm
Stall Current: 2600mA+10percent 3400mA+10percent
Applicable: For 18 110 112 scale RC car, robot, ship, manipulator etc.

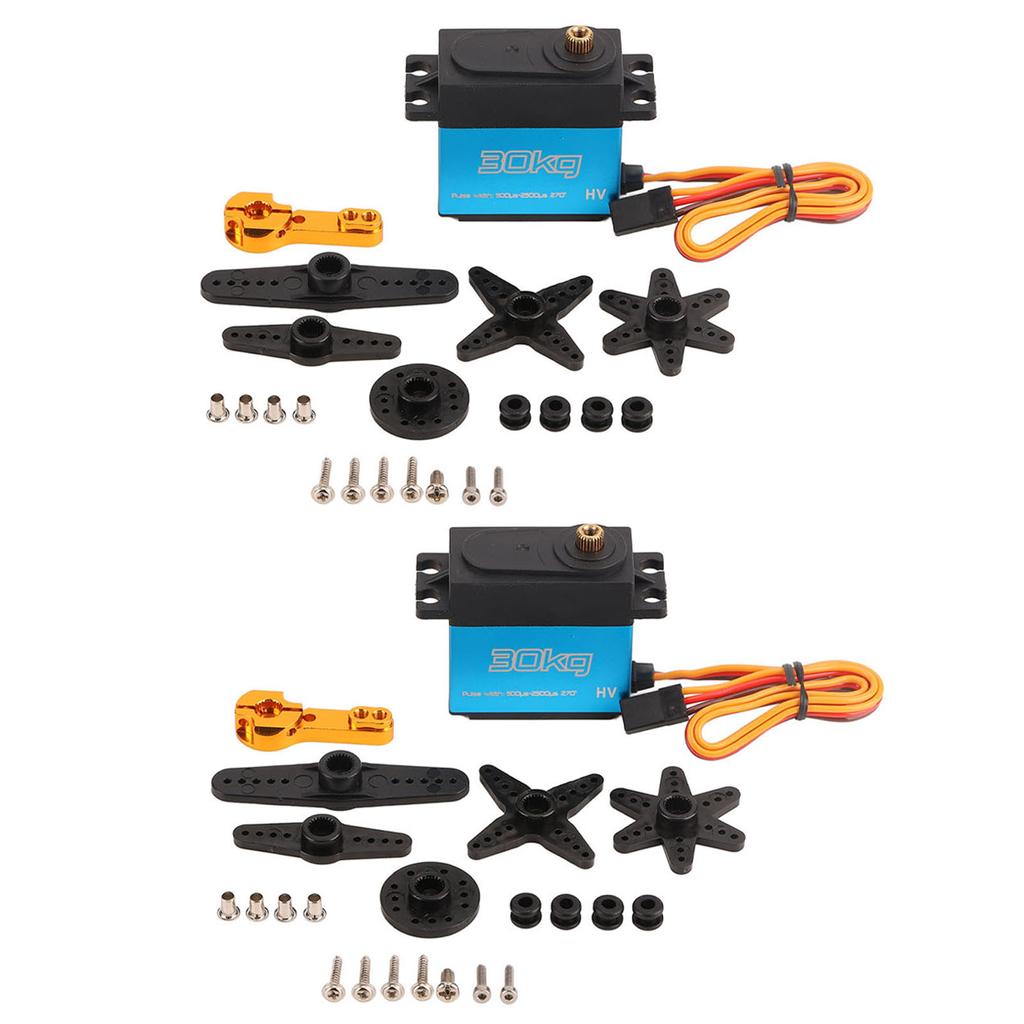

Package List:
2 x Servo2 x Metal Servo Arm10 x Plastic Servo Arm8 x Screw Barrel8 x Rubber Pad14 x ScrewUpgrade Performance: Waterproof rubber sealing screws, made of first class materials, ensure the longevity of the product. 30kg waterproof digital servo, the maximum torque can be up to 32kg.cm (7.2V).
High Accuracy: Equipped with high accuracy potentiometers and high resolution digital chips to ensure stable performance, quick response, strong anti interference ability, low noise and fast heat dissipation.
270 Degree Rotation: The controllable angle range is 0 to 270 degrees, with good linearity and high control accuracy. It can rotate 360 degrees when the power is off, which is very suitable for robot joint activities.
Applications: It can be widely used for 18 110 112 scale robots, robotic arms, climbing cars, remote control boats, remote control planes, etc.
Longer Service Life: High accuracy metal gears with hard anodized treatment, longer service life. The CNC aluminum middle shell enhances heat dissipation to ensure the normal operation of the servo motor.
