Feature:
1.ELM327 Wifi OBDII Scanner can not connect to Bluetooth.
2.Please turn on your car when connecting,otherwise,the App will not connect successfully.
3.Scan the packing box QR code to get the instruction.
4.For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector)under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBDII compliant.
5.Compatible with Andriod and IOS.
Specifications:

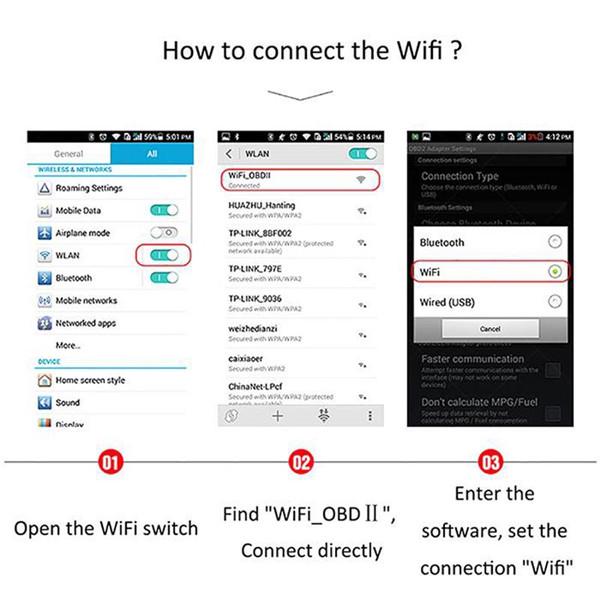

SSID:CLKDevices
Port:35000
Range:50 ft (Line of sight)
Antenna:Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius

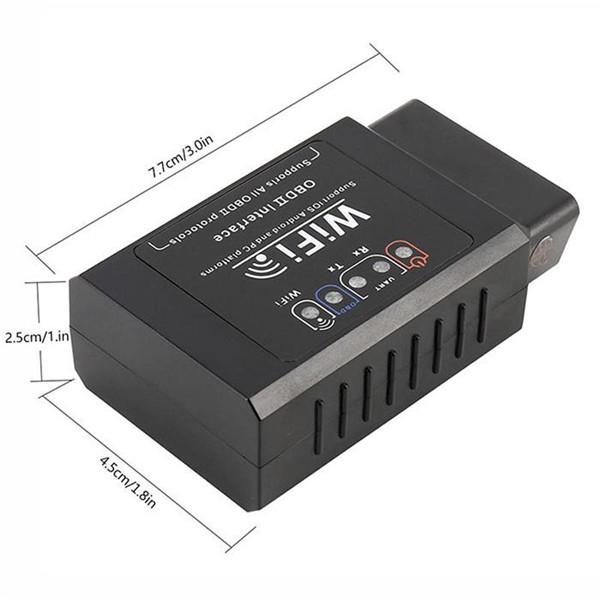

Physical Dimensions:9*2.5*5CM
Functions:
1) Display current sensor data, including:
* Engine RPM,
* Calculated Load Value,
* Coolant Temperature,
* Fuel System Status,
* Vehicle Speed,
* Short Term Fuel Trim,
* Long Term Fuel Trim,
* Intake Manifold Pressure,
* Timing Advance,
* Intake Air Temperature,
* Air Flow Rate,
* Absolute Throttle Position,
* Oxygen sensor voltages/associated short term fuel trims,
* Fuel System status,
* Fuel Pressure.
Multi-Protocol Support:
SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
SAE J1939 CAN(29bit ID,250*Kbaud)
Support APP:
Downloadable "TORQUE" App For Android and "OBD CAR DOCTOR" App for IOS
DashCommand (Fee applied)
Torque Pro(Fee applied)
Torque Lite
OBD Auto Doctor
GeekOD viecar
Mini OBDII
OBD Fusion

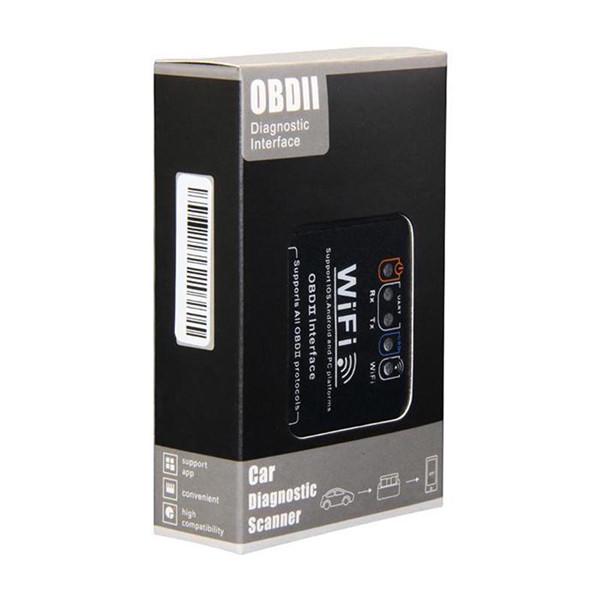

Packing List:
1*OBDII Wifi Adapter
Product type: Air Bag Scan Tools & Simulators
